Licensed EMA Electrical Works & Complete House Rewiring
Certified electrical installation and rewiring for HDB flats, condominiums, and commercial spaces. Concealed conduits, distribution board upgrades, architectural cove LED lighting, and smart home switches.
EMA
Licensed Workers
CP5 / SS638
Safety Compliant
30mA RCD
Surge Protection
12-Month
Direct Warranty
Full House Rewiring & Concealed Conduit Chasing
Singapore CP5 Electrical Standard with Neutral Wires for Smart Automation
Old brittle rubber or substandard wiring poses severe fire hazards. Our EMA-licensed electricians run 100% high-purity copper core cables enclosed inside heavy-gauge high-impact PVC conduits. We chase clean wall channels and conceal all cables flush with the wall.

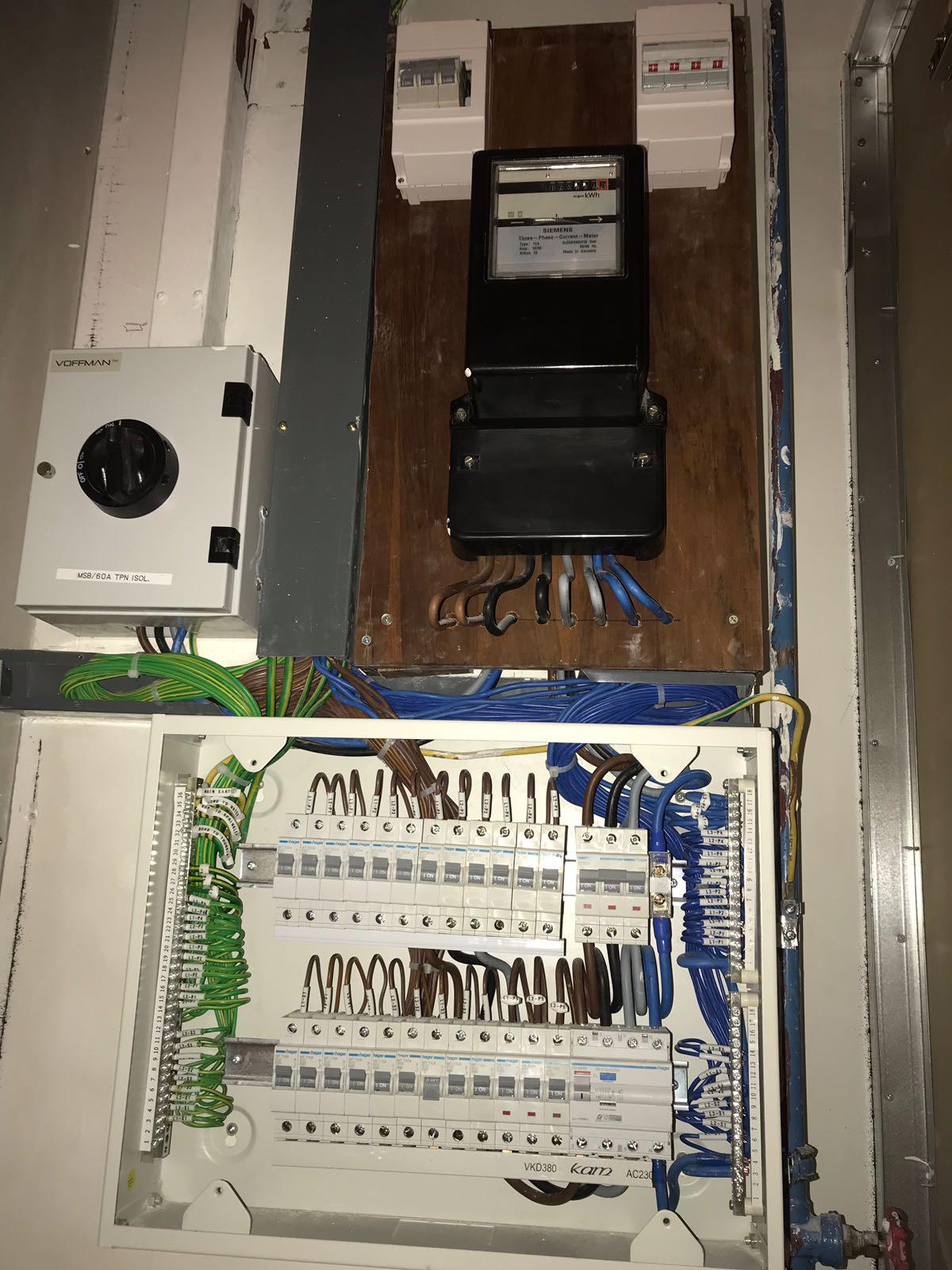

Main Distribution Board (DB Box) Upgrades & RCD Protection
ABB, Hager & Schneider Residual Current Devices (30mA Safety)
Upgrade obsolete fuse boxes with modern modular consumer units. We install sensitive 30mA Residual Current Circuit Breakers (RCCB/RCD) and individual miniature circuit breakers (MCB) to prevent fatal shocks and localize electrical faults without tripping the entire house.

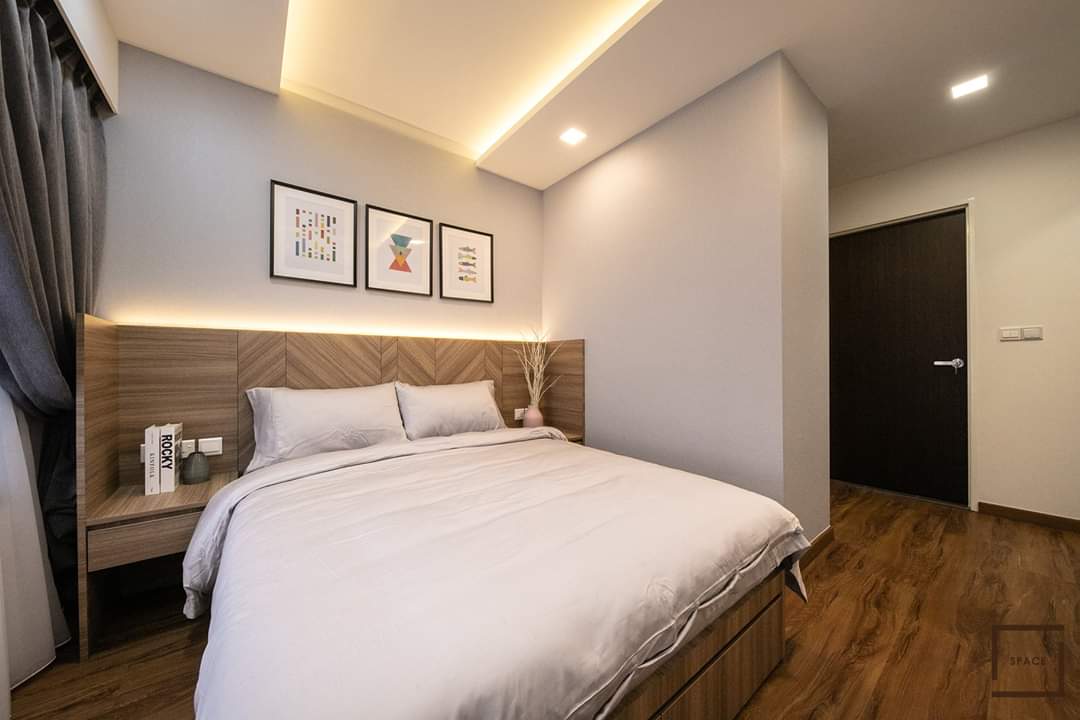

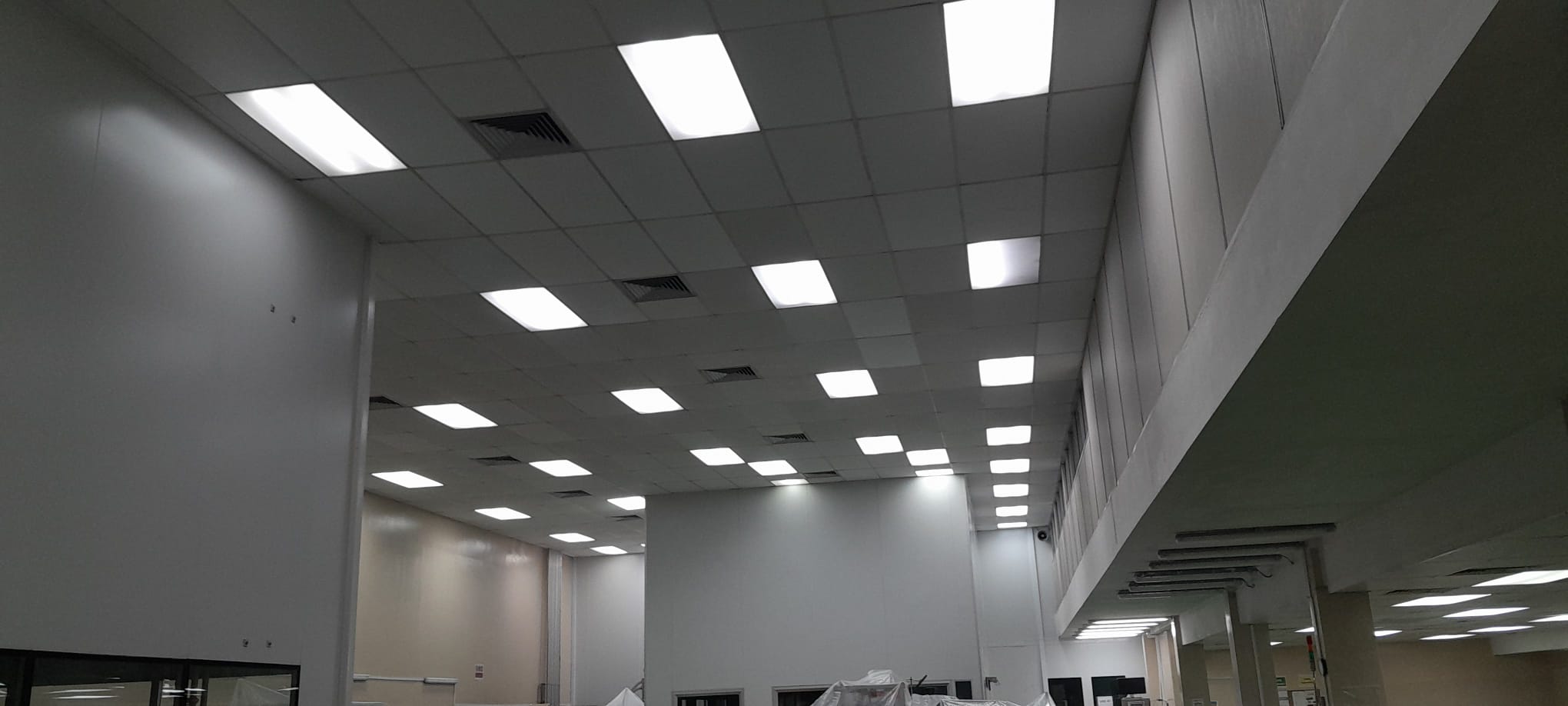

Architectural Cove Lighting, Track Lights & Smart Automation
Flicker-Free High CRI90+ LED Drivers & Zigbee/Matter Integration
Elevate your interior ambience with architectural lighting circuits. We design customized double-switched loops, aluminum profile cove extrusions, magnetic low-voltage tracks, and smart dimmer modules compatible with Apple HomeKit, Google Home, and Alexa.

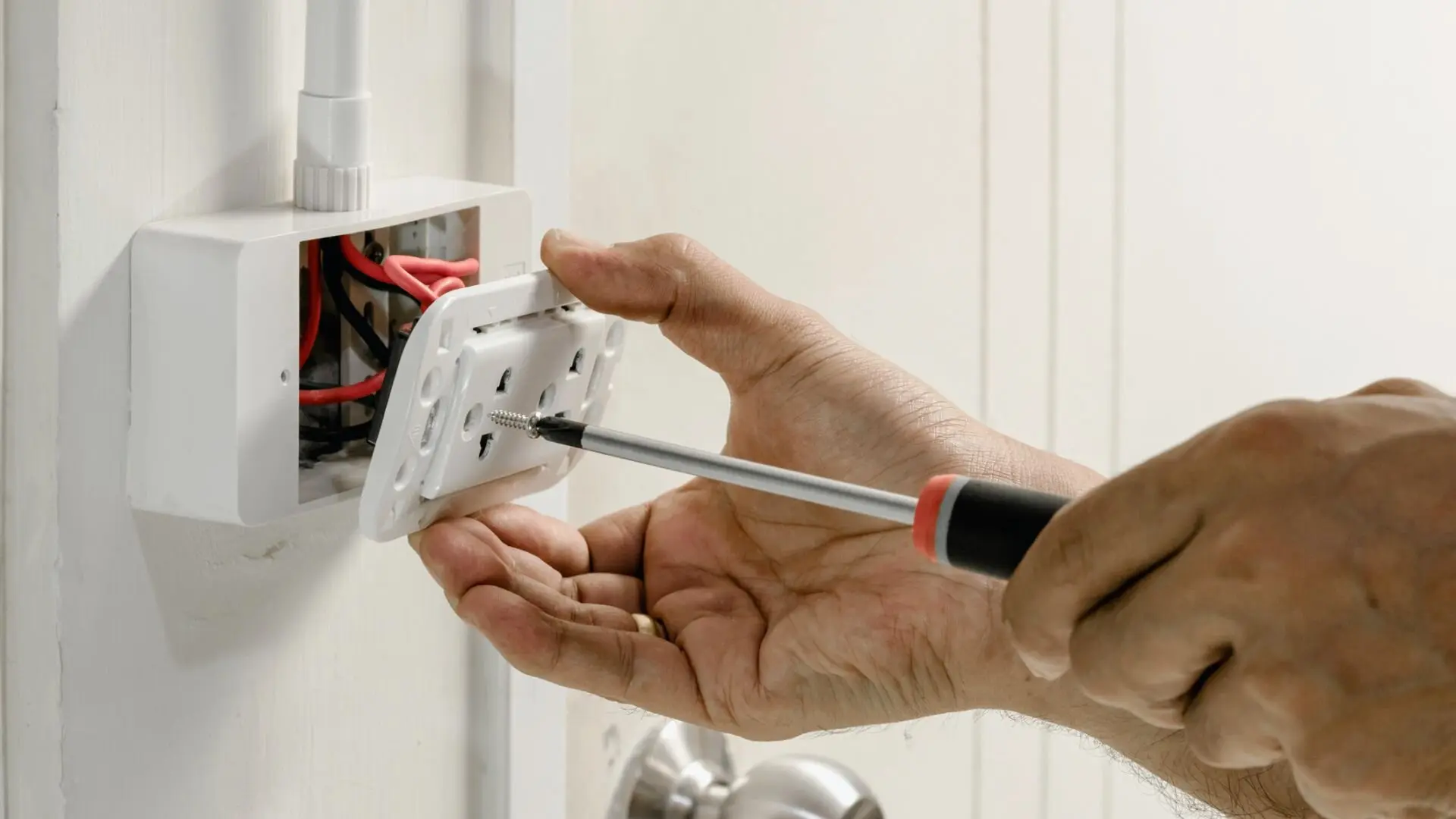

High-Amp Sockets, Cooker Points & Water Heater Isolators
Dedicated 15A/20A/32A High-Load Radial Circuits
Prevent breaker tripping with dedicated electrical circuits for heavy appliances. We run individual high-amp lines for induction hobs, built-in ovens, instantaneous water heaters, air conditioners, and EV chargers.
High-Amperage Circuit Specifications
Modern heavy electrical appliances require dedicated cabling dimensions and breakers to prevent hazardous cable overheating and frequent DB box trips.
| Appliance Category | Estimated Power Draw | Dedicated Cable Spec | Breaker / Isolator Rating |
|---|---|---|---|
| Storage Water Heater (25L - 50L) | 2,500W - 3,000W | 2.5mm² Copper Cable | 20A Double-Pole DP Isolator |
| Multi-Zone Induction Hob | 4,000W - 7,400W | 4.0mm² - 6.0mm² Cable | 32A Dedicated MCB Circuit |
| Multi-Split Inverter Air-Conditioner | 2,000W - 4,500W | 4.0mm² High-Temp Cable | 20A Weatherproof Rotary Isolator |
| Built-In Convection Oven | 2,800W - 3,500W | 2.5mm² Heat-Resistant Wire | 15A/20A Dedicated Loop |
Frequently Asked Questions About Electrical Works
Why do older HDB resale flats require a complete electrical rewiring?
Older flats built before the 1990s use degraded PVC or rubber cabling that deteriorates over decades. Modern households place heavy power loads (induction hobs, dishwashers, multiple aircon units) that older wiring cannot safely handle.
Will electrical cables be concealed inside the walls or run on surface trunking?
In HDB flats, wiring on hollow brick walls can be completely concealed by wall chasing. On load-bearing reinforced concrete shear walls, we use neat, paintable ultra-slim PVC casing.
Do you provide EMA Single Line Diagrams (SLD) and CS/3 testing endorsement?
Yes. All our electrical installations are supervised by EMA Licensed Electrical Workers (LEW). We perform insulation resistance testing and submit certification paperwork.
Need Certified Electrical Works or Safe Rewiring?
Contact our licensed electrical workers (LEW) today for an on-site safety inspection and electrical point quotation.
